The GPU allocation model: why the number lies

A fixed fleet, many teams, one dashboard number: available GPUs. On a shared cluster that number is not read — it is assembled from four sources. Every capacity ticket I handled this year was two of them disagreeing.

The model

graph TB
    C["cluster<br/>nodes · GPU types · MIG slices"] -->|"nodes → tenant<br/>target: k8s | slurm"| T["tenant"]
    T -->|"GPUs by type → workspace"| W["workspace<br/>queue: capability · deserved · borrow"]
    W --> P["pods"]

Three levels, three owners. A node serves one target — Kubernetes or the batch scheduler — never both. A workspace is a scheduler queue with a hard ceiling, a deserved share, and a borrowing flag.

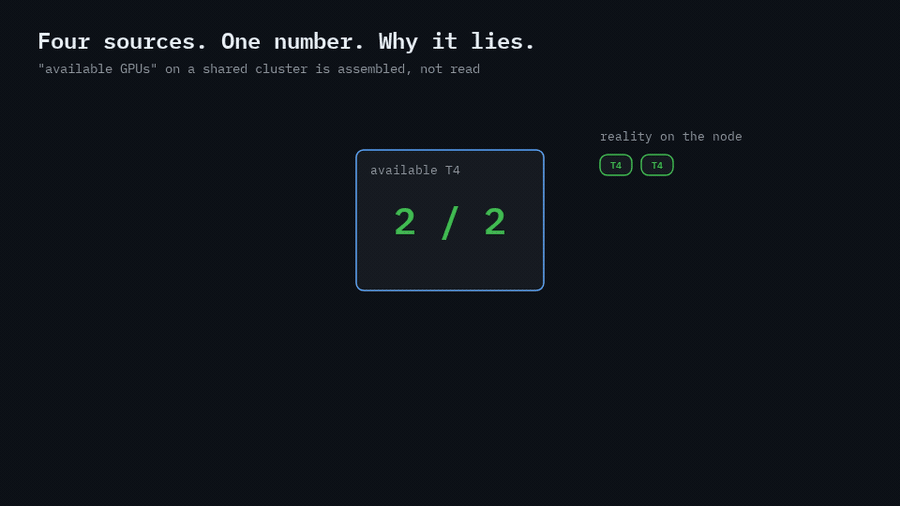

Four sources, one number

graph LR
    K["kubernetes nodes<br/>capacity"] --> N["available GPUs"]
    R["platform records<br/>allocation"] --> N
    Q["scheduler queues<br/>usage"] --> N
    B["batch scheduler<br/>slurm target"] --> N
    style N fill:#58a6ff22,stroke:#58a6ff

Six lies

graph LR
    L1["3 of 2<br/>node left the cluster,<br/>record stayed"] --> F1["count from<br/>healthy nodes only"]
    L2["idle to slurm,<br/>busy on k8s"] --> F2["filter by target;<br/>busy = any workload"]
    L3["usage frozen<br/>'13Gi' is not an int"] --> F3["parse quantities;<br/>skipped sync = alert"]
    L4["4 of 2<br/>MIG slices counted<br/>as devices"] --> F4["populate from<br/>physical GPUs"]
    L5["Ready, 0 GPUs,<br/>reported healthy"] --> F5["health includes<br/>capacity"]
    L6["H100s listed for<br/>a tenant with T4s"] --> F6["render from allocation,<br/>not scheduler vocabulary"]
    style L1 fill:#f8514922,stroke:#f85149
    style L2 fill:#f8514922,stroke:#f85149
    style L3 fill:#f8514922,stroke:#f85149
    style L4 fill:#f8514922,stroke:#f85149
    style L5 fill:#f8514922,stroke:#f85149
    style L6 fill:#f8514922,stroke:#f85149
    style F1 fill:#3fb95022,stroke:#3fb950
    style F2 fill:#3fb95022,stroke:#3fb950
    style F3 fill:#3fb95022,stroke:#3fb950
    style F4 fill:#3fb95022,stroke:#3fb950
    style F5 fill:#3fb95022,stroke:#3fb950
    style F6 fill:#3fb95022,stroke:#3fb950

Two more that did not fit a box: reclaim between workspaces only works if deserved lists every resource — CPU, memory, ephemeral storage — not just GPU. And “0/18 nodes: insufficient mig-4g.20gb” lived only in Kubernetes events, which are ephemeral, so the UI showed nothing. Persist the scheduling reason.

MIG as desired state

Slicing a GPU is cordon → drain → profile → device-plugin restart → uncordon. The imperative version produced stuck nodes. Now it is declarative:

graph LR
    D["platform writes<br/>desired: cordon, MIG profile"] --> R["node reconciler"]
    R --> K["kubernetes<br/>cordon · ConfigMap · roll MIG manager"]
    K --> R
    R --> O["observed status<br/>written back"]
    H["health monitor"] -.->|"owns only<br/>its fields"| O
    style R fill:#3fb95022,stroke:#3fb950

The bug that taught field ownership: a health monitor replaced the whole node record on every write and clobbered the desired fields the reconciler had just set. Every writer owns named fields; nobody owns the document.

Rules

1. One source per number — capacity from Kubernetes, allocation from the platform, usage from queues.
2. Health includes capacity.
3. A skipped sync is an alert, not a warning line.
4. Persist scheduling reasons.
5. Model target as a node property from day one.
6. Check for running workloads before deallocating, and say so in the dialog.

What I would do differently

Design the accounting before the UI — half of these were “UI bugs” whose root cause was a number computed in the wrong place. Make MIG declarative from the start. Put cost next to allocation; once people see it, over-allocation fixes itself.
